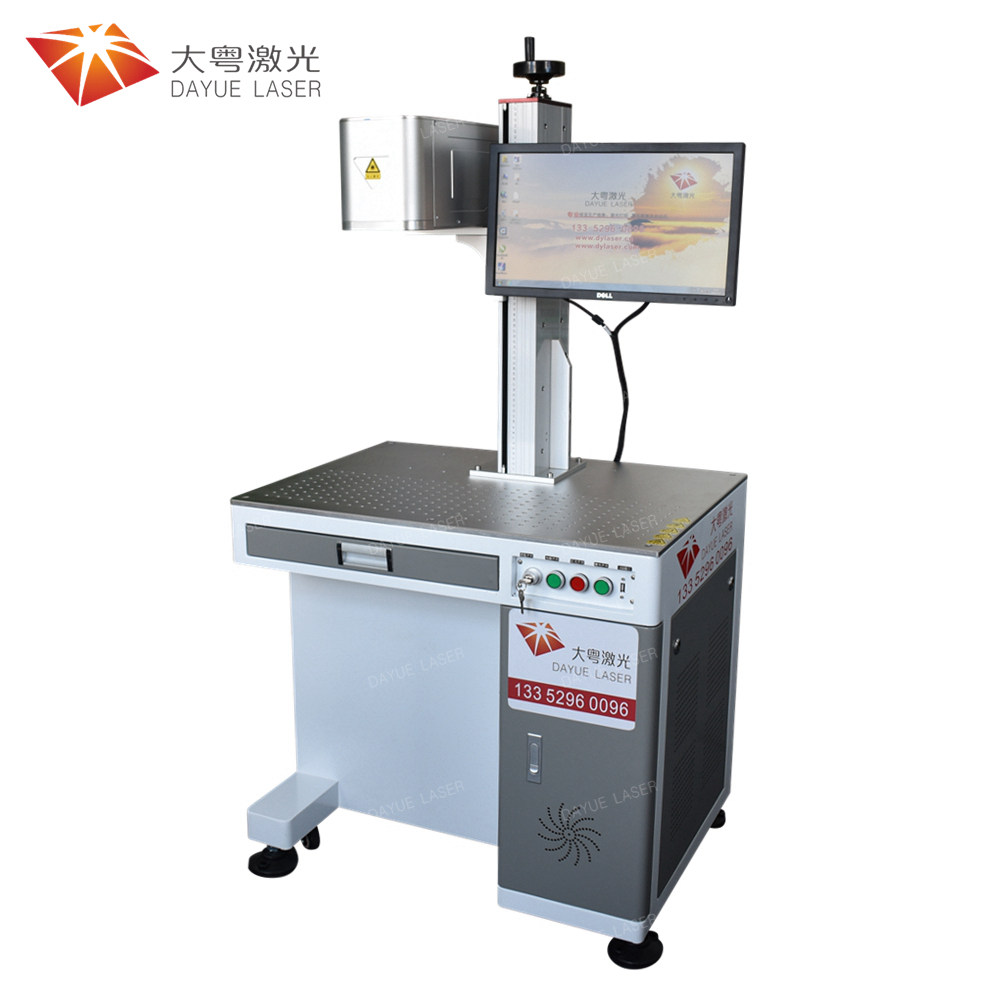

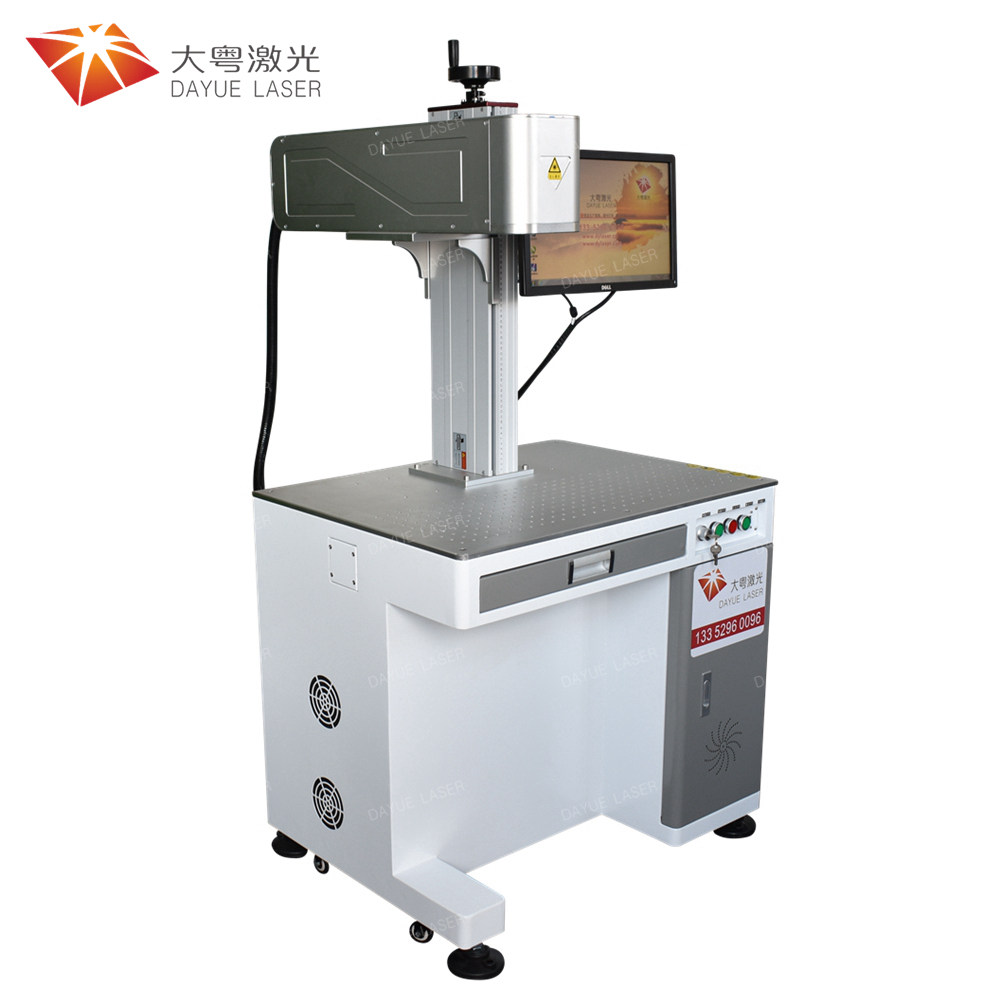

3D laser marking machine
It has the function of three-dimensional laser marking on the three-dimensional surface, which can mark arbitrarily within the height range of 60mm, and laser marking of various metal or non-metal products with three-dimensional surface. It is widely used...
Product Details
It has the function of three-dimensional laser marking on the three-dimensional surface, which can mark arbitrarily within the height range of 60mm, and laser marking of various metal or non-metal products with three-dimensional surface. It is widely used in the laser 3D marking of mobile phone manufacturing, three-dimensional circuits, medical equipment, molds, 3C electronics, auto parts, electronic communications and other industries.
The 3D laser marking machine has the function of 3D curved surface and stereo laser marking, which can focus the fine spot within the height range of 60mm. "Arbitrary" marking, fine spot, make the laser marking effect of long and short distances consistent. Digital three-axis dynamic focusing technology, high-precision three-dimensional positioning technology, high-speed focusing and scanning system, arbitrary zoom, real-time control. Equipped with a high-performance fiber laser and a heavy workbench, the machine has stable performance, fast marking speed and good marking effect. Good laser beam, short pulse, high peak power, high repetition rate, bring perfect marking effect to customers.
Features:
1. It has the function of three-dimensional curved surface marking to ensure that the focusing spot is fine and the marking effect is consistent within the height range of 0-60mm.
2. It has a large-scale marking function, and the marking range reaches 400mm*400mm, breaking the limitation of the traditional optical fiber marking machine.
3. Adopt advanced digital three-axis dynamic focus technology, fast marking speed, high real-time zoom control, uniform focus spot.
4. The software is powerful and can import graphics output by mainstream 3D design software. And can perform simple three-dimensional graphics editing, with the function of converting two-dimensional graphics to three-dimensional, and the operation is simple and convenient.
5. The modular design concept is compatible with mainstream fiber lasers, and the product is highly adaptable.
6. It adopts a heavy working platform with good vibration and stress resistance, good flatness and high stability.
Technical Parameters:
Model: DY-FLM-D
Laser power: 10W/20W/30W/50W
Power supply: AC220V/50HZ
Marking range: ≤400mm*400mm
Marking speed: 0-7000mm/s
Minimum line width: 0.02mm
Cooling method: air cooling
Total power: <1000W (excluding auxiliary machine)
Working temperature: 10℃-30℃
Working humidity: 5%-85% (no condensation)
Support graphics formats: AI, DXF, BMP, JPG, PLT, etc.
Industry Application：
Used in handicrafts, watches and jewelry, electronic originals, medical equipment, traffic equipment, lighting advertising lighting, food material packaging, tobacco, leather, auto parts, tool parts, plastics and other metal and non-metal three-dimensional surface laser marking. Applicable materials include stainless steel, aluminum-magnesium alloy, zinc alloy, copper, nickel-plated, zinc-plated, alumina, plastic, pig iron, etc.
