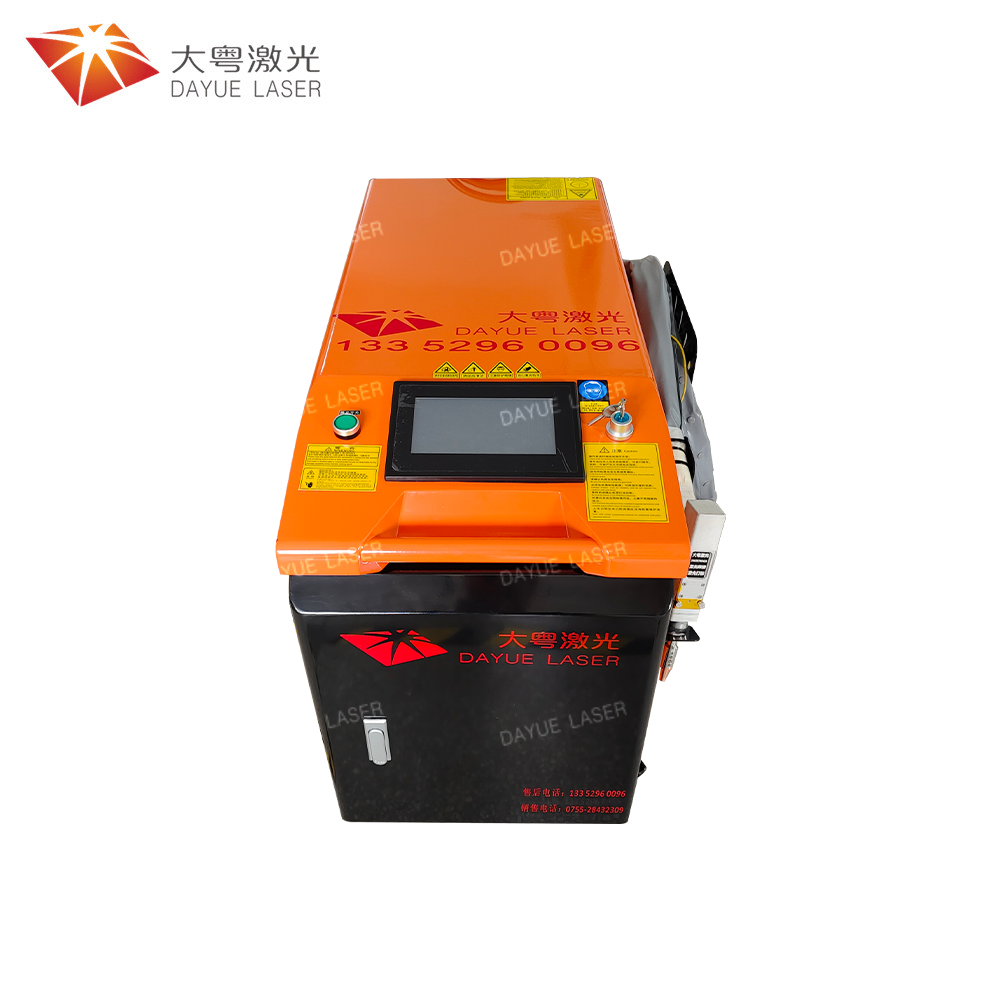

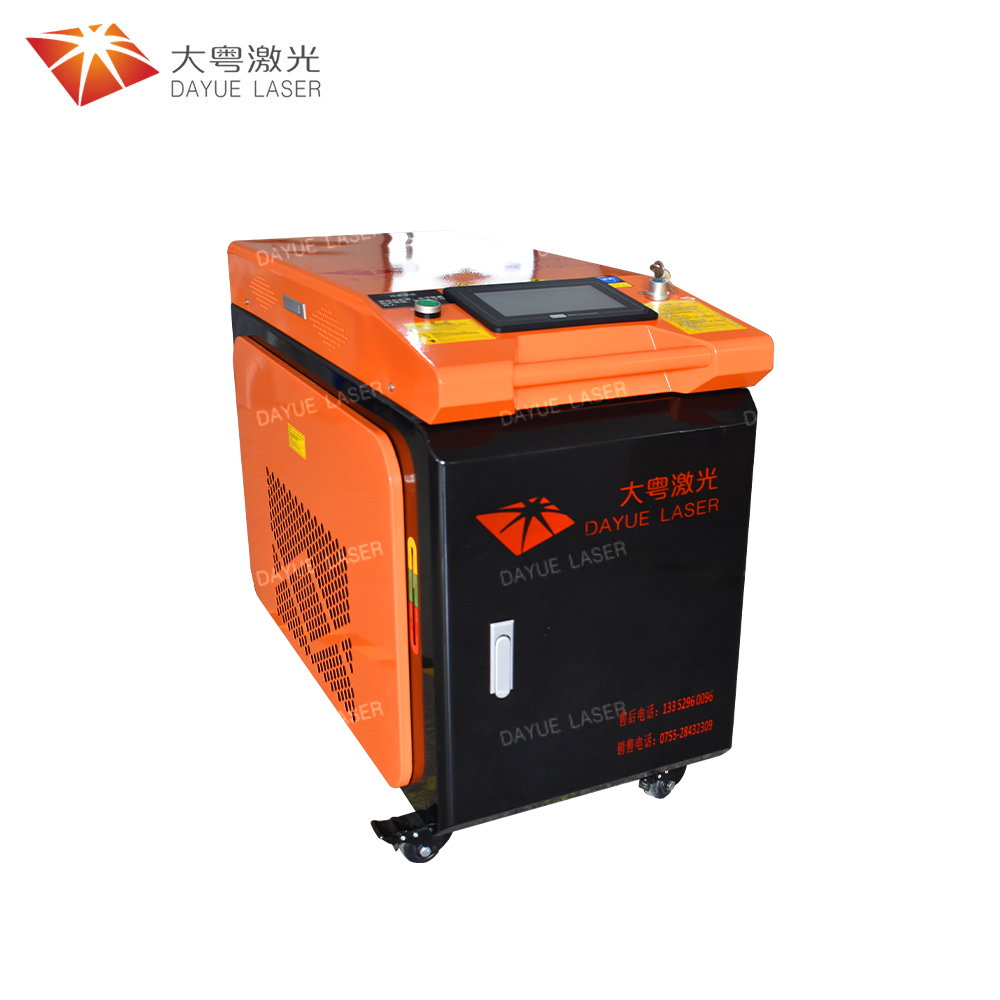

Handheld manual laser welding machine (small)

The handheld manual laser welding machine is a handheld welding device that uses a high-energy-density laser beam as a heat source. Suitable for welding of metal material thin plates (≤3mm) and medium and thick plates (4mm+). Laser welding and repair....

The handheld manual laser welding machine is a handheld welding device that uses a high-energy-density laser beam as a heat source. It transmits laser energy to the welding gun through optical fiber to achieve non-contact melting welding of metal materials. The equipment consists of a laser generator, a cooling system, a handheld welding gun, and an intelligent control system. It occupies a smaller area, has low site requirements, and is equipped with mobile pulleys, so the workstation can be adjusted at any time according to site requirements.

Features:
1. Lightweight welding gun head, one-handed operation, flexible welding angle.
2. Good weld quality. The wobble welding technology can achieve fish scale welding effect.
3. The heat affected range is small, the energy is concentrated, and the welding workpiece does not deform or is very small.
4. Can weld many metal materials. Stainless steel, iron, aluminum, carbon steel, galvanized sheet, titanium, alloy, etc.
5. The welding speed is 5 times that of traditional argon arc welding, and the daily production capacity is increased by more than 60%.
6. The operation technical threshold is low and you can learn to use it in 2-3 days. It saves labor costs.

Note:
1. The welding gun extension cable is 8-10 meters long and contains optical fiber, which has a high risk of fiber breakage and a bending radius of >15cm.
2. Laser direct/reflection can cause damage to eyesight, so wearing professional laser protective glasses is mandatory.
3. Laser is easily reflected when welding highly reflective materials (copper, aluminum), so pay attention to protecting the operator's safety and isolate the work area.

Industry Application：

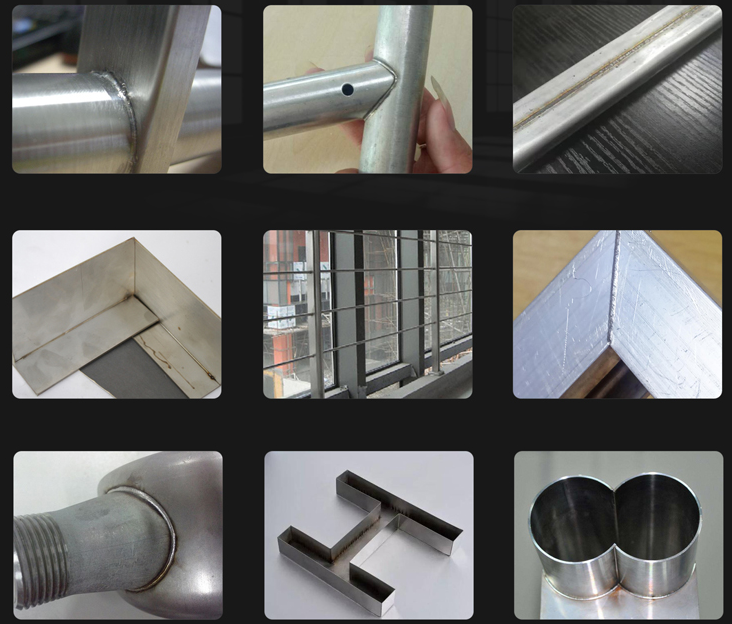

The handheld manual laser welding machine is suitable for welding and repair. Automobile body welding. Pipe and container welding. On-site repair. Hull welding. Door and window and daily hardware welding. Advertising word welding. Etc. Suitable for welding of metal material thin plates (≤3mm) and medium and thick plates (4mm+).
