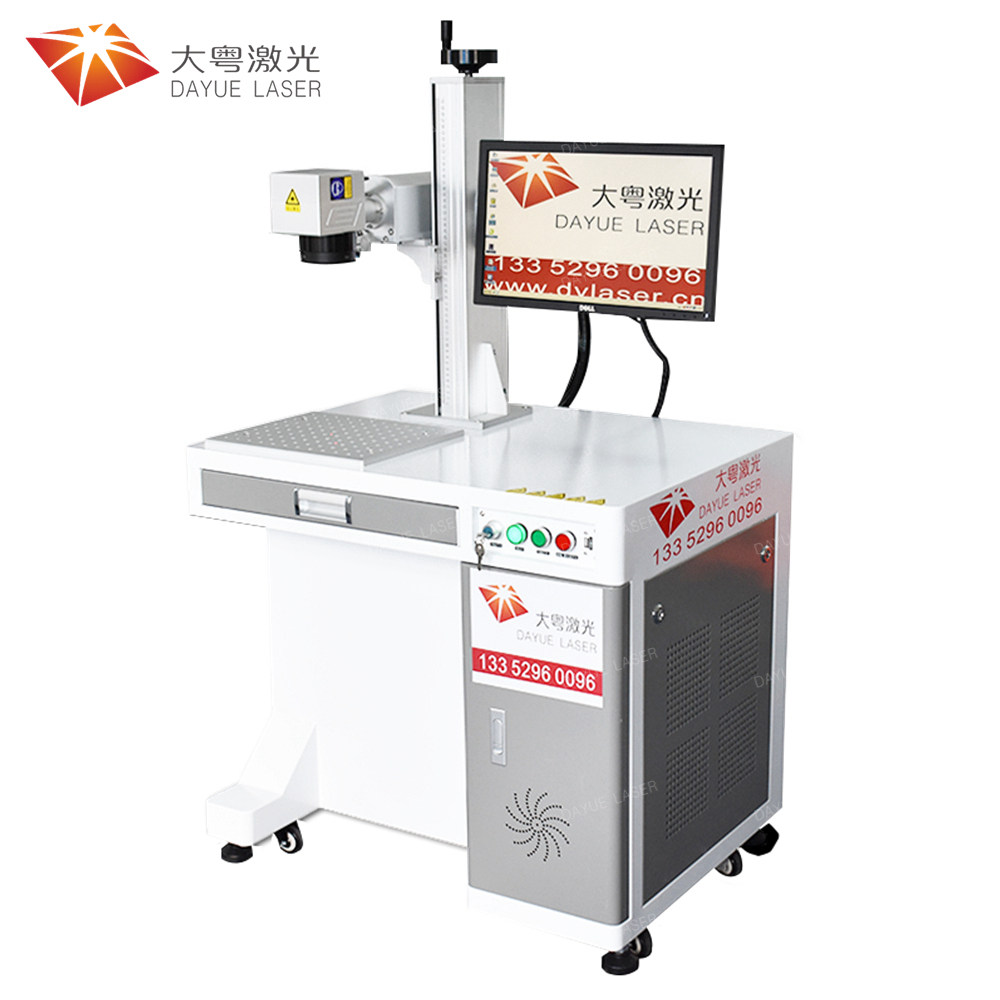

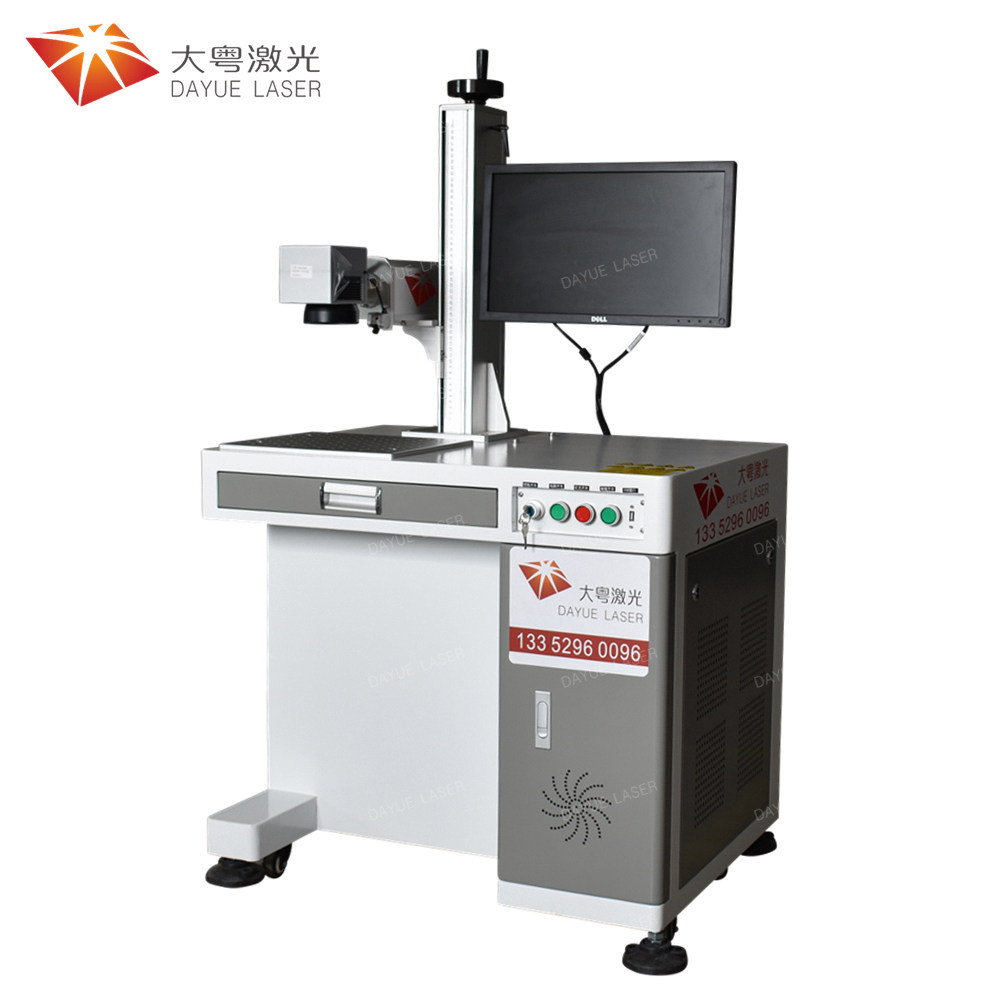

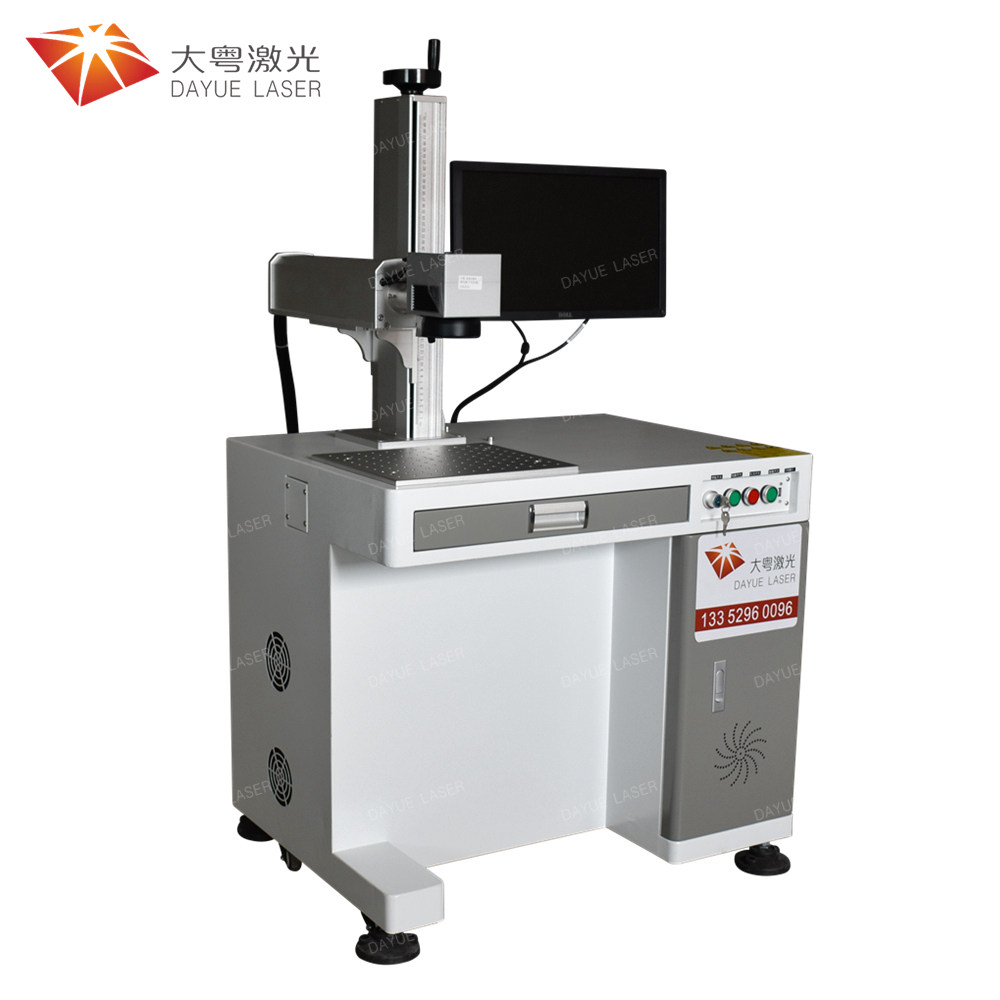

Fiber laser marking machine

Fiber laser marking machine is a new generation of laser marking system, which has high photoelectric conversion efficiency and saves energy. It adopts air-cooled cooling method, good heat dissipation performance, small size of the whole machine, good out...

Product Details
Fiber laser marking machine is the third generation laser marking machine system developed by our company using advanced laser technology in the world. The fiber laser is used to output the laser, and then the ultra-high-speed scanning galvanometer system realizes the marking function, and the fiber laser marking has high electro-optical conversion efficiency. It adopts air-cooled cooling method, the whole machine is small in size, the output beam quality is good, the reliability is high, the long operating life, and energy saving. It can engrave metal materials and some non-metal materials, and is mainly used in fields with high requirements for depth, smoothness and fineness. Such as mobile phone stainless steel trim, clocks, molds, IC, mobile phone keys and other industries, bitmap marking. Exquisite pictures can be marked on metal, plastic and other surfaces. And the marking speed is 3-12 times of the traditional first-generation lamp-pumped marking machine and second-generation semiconductor marking machine.

Fiber laser marking machine is a new generation of laser marking system, which has high photoelectric conversion efficiency and saves energy. It adopts air-cooled cooling method, good heat dissipation performance, small size of the whole machine, good output beam quality, and no optical lens in the resonant cavity. It has the performance of free adjustment, maintenance free and high reliability. The service life is about 100,000 hours, and it can engrave metal materials and most non-metal materials.

Features:
1. Excellent beam quality:
The beam quality of the fiber laser marking machine is much better than that of the traditional solid-state laser marking machine. The laser output of the TEMOO mode, the focused spot diameter is less than 20um. The divergence angle is 1/4 of the diode pumped laser, which is especially suitable for precise and fine marking.
2. Low cost of use:
The electro-optical conversion efficiency reaches 30%, and the power consumption of the whole machine is less than 500W, which is 1/10 of the lamp-pumped solid-state laser marking machine, which greatly saves energy consumption.
3. Maintenance-free operation:
The laser does not require any maintenance, and there is no need to adjust or clean the lens.
4. The laser has a long service life:
The fiber laser marking machine uses a laser diode as the pump source, and its average working time can reach 100,000 hours.
5. Small size, suitable for various space environments:
The laser realizes the laser distance transmission through the optical cable and has a compact structure.
6. Good heat dissipation effect:
No need for a huge water cooling system, just simple air cooling. It can work normally under certain harsh environment such as shock, vibration, high temperature or dust.
7. Fast processing speed:
The processing speed is 2-3 times of traditional laser marking machine.

Industry Application:
Metal and various non-metal materials, hard alloy, oxide, electroplating, coating, ABS, epoxy resin, ink, engineering plastics, etc. Plastic translucent buttons, IC chips, digital product parts, precision machinery, jewelry, sanitary ware, measuring tools and cutting tools, clocks and glasses, electrical appliances, electronic components, hardware accessories, hardware tools. Mobile phone communication parts, automobile and motorcycle accessories, plastic products, medical equipment, building materials, pipes, etc. These high precision product markings.

Technical Parameters:
Model: DY-FLM
Laser power: 5W/10W/20W/30W/50W/100W
Laser wavelength: 1064nm
Repetition frequency: 0-100KHZ
Beam quality: <5
Carving line speed: ≤7000m/s
Minimum line width: 0.01mm
Minimum character: 0.15mm
Repeatability: ±0.002
Power supply: Single-phase AC 90-260V/50Hz-60Hz
Machine power: 500W
Engraving depth: ≤0.5mm
Operating system: Win10/Win7/WinXP
Cooling method: built-in air cooling
Control interface: standard USB
Marking range: 50mm/50mm-300mm/300mm
File format: all fonts in Windows operating system font

Advantages of fiber laser marking machine:
1. The perfect beam quality has achieved ultra-high-precision marking effect, which is especially suitable for anti-white and frosted effects on stainless steel and other metal products.
2. Support automatic encoding, printing serial number, batch number, date, barcode, two-dimensional code, automatic number skipping, etc.
3. Support a variety of common graphic file formats such as PLT, DXF, AI, DST, BMP, JPG, etc.
4. The software is compatible with files of CorelDraw, AutoCAD, Photoshop and other software.
5. Using the third-generation fiber solid-state laser, the electro-optical conversion efficiency of the pump light source after fiber coupling is as high as 80%, the beam quality is higher, and the life span is long. The life of the laser can reach 100,000 hours.
6. Full air cooling, no consumables, maintenance-free, power saving and energy saving, ultra-low cost of later use
