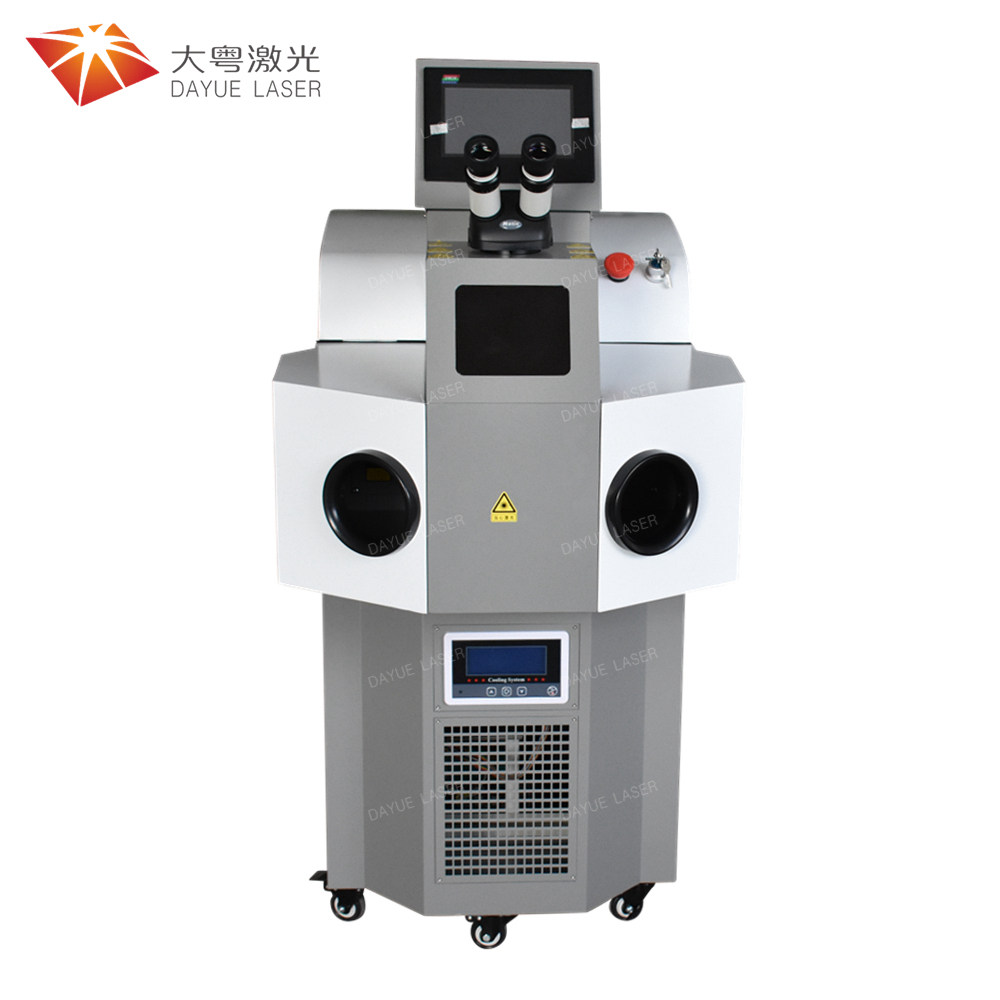

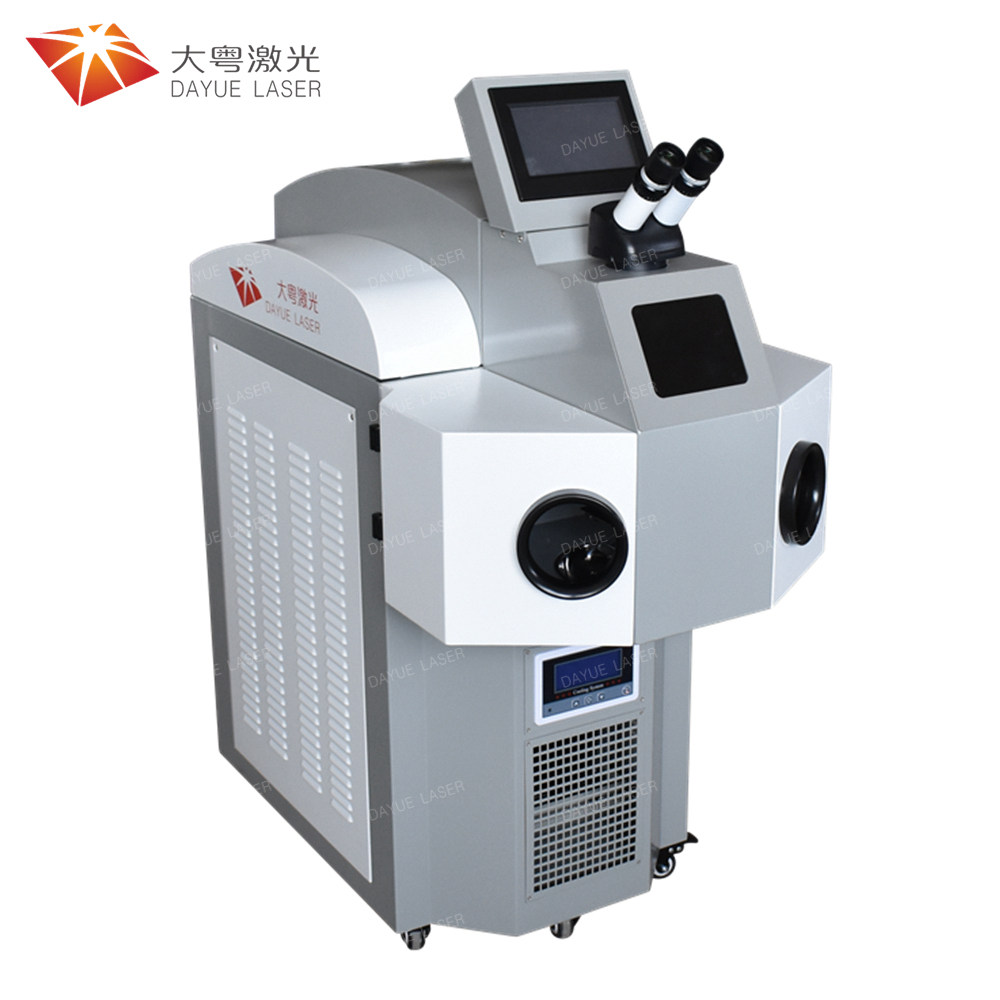

Jewelry laser spot welding machine (integrated)

Dayue Laser has developed a machine integrated with the water tank, which saves space in the use position. It is mainly used for spot welding sand holes, repairing holes, repairing seams, spot welding sand holes and inlaid parts of gold and silver jewelry...

Product Details
Dayue Laser has developed a machine integrated with the water tank, which saves space in the use position. It is mainly used for spot welding sand holes, repairing holes, repairing seams, spot welding sand holes and inlaid parts of gold and silver jewelry. The welding spot size can be adjusted at will during the welding process; the heat-affected zone is small; the solder joints are fine and beautiful without excessive post-welding treatment; precise positioning, and the surrounding inlaid jewelry will not be damaged during the welding process.

Jewelry laser spot welding machine is a water-cooled integrated laser welding system developed by Dayue Laser for the needs of the jewelry industry. The system is mainly composed of laser, power supply, control system, chiller, light guide and focusing, and binocular stereo microscope observation. It has a compact structure and small size. The microscopic coordinate indication coaxial with the laser beam makes it easy to locate the workpiece without special fixtures. The laser power, pulse frequency, and pulse width can be preset and changed through the control panel. With filter protection, it protects the operator’s eyes from being damaged by the laser, relieves the operator’s glasses fatigue, and improves work efficiency. A high-definition CCD monitoring system can be installed as required.
Mainly used for spot welding sand holes, repairing holes, repairing seams, spot welding sand holes and inlaid parts of gold and silver jewelry. The welding spot size can be adjusted at will during the welding process; the heat-affected zone is small; the solder joints are fine and beautiful without excessive post-welding treatment; precise positioning, and the surrounding inlaid jewelry will not be damaged during the welding process.

Features:
1. The developed high-performance laser power supply has high single-pulse energy, low power, extremely low thermal effect, and is not hot during welding.
2. The automatic shading system is adopted to eliminate the damage to the eyes during working hours. Humanized design, accord with ergonomics, work for a long time without fatigue.
3. No need to fill solder, fast welding speed, high quality, reliable joints, small deformation of the workpiece, small heat-affected zone, beautiful shape, no pollution to the solder joints, high efficiency and environmental protection.
4. The ceramic laser cavity and R&D products of well-known international manufacturers ensure the high reliability and performance of the equipment. It has the ability to work continuously for 24 hours, the performance of the whole machine is stable, and maintenance-free within 10,000 hours.
5. The unique YAG crystal cooling method improves the beam quality and the life of the xenon lamp, and reduces the use cost.
6. Energy, pulse width, frequency, spot size, etc. can be adjusted in a larger range to achieve a variety of welding effects. The parameters are adjusted by the control rod in the enclosed cavity, which is simple and efficient.

Industry Application:
Jewelry laser welding machine can weld K gold, platinum, titanium, silver, copper, stainless steel, aluminum and other metal materials and their alloys, as well as precision welding of various jewelry and small parts. It is suitable for many industries and fields such as electronics, communications, hardware, watches, medical equipment, aluminum alloy dentures, meters, machining, automobiles, etc.

Technical Parameters:
Model: DY-ESW200 DY-ESW400 DY-ESW600
Laser power: 200W 400W 600W
Laser wavelength: 1064nm 1064nm 1064nm
Welding frequency: ≤100hz ≤100hz ≤100hz
Pulse width: 0.1-20ms 0.1-20ms 0.1-20ms
Welding depth: ≤2.0mm ≤3.0mm ≤5.0mm
Spot diameter: 0.1-2.0mm 0.1-2.0mm 0.1-3.0mm
Power requirements: AC220V/50HZ single-phase AC380V/50HZ three-phase AC380V/50HZ three-phase
Power consumption of the whole machine: ≤7KW ≤13KW ≤18KW
Control system: microcomputer control
Cooling system: external/built-in water cooling optional
