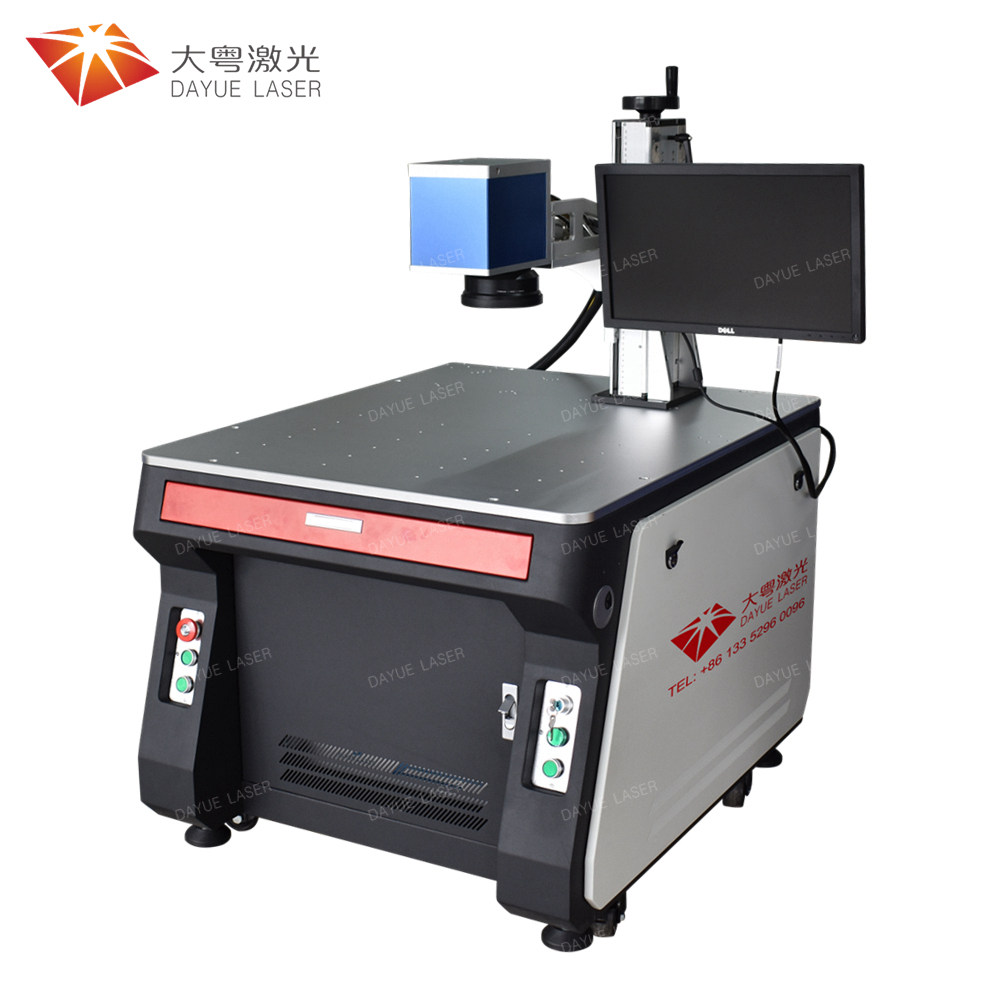

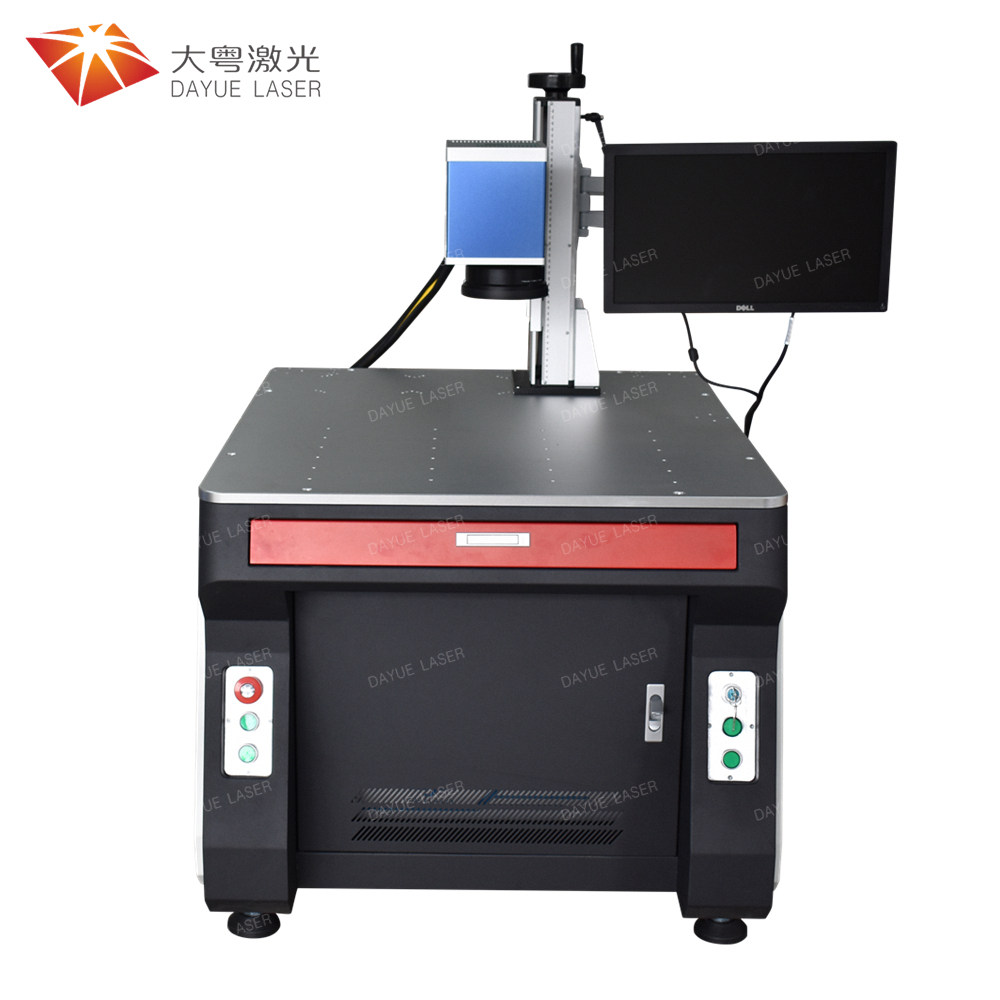

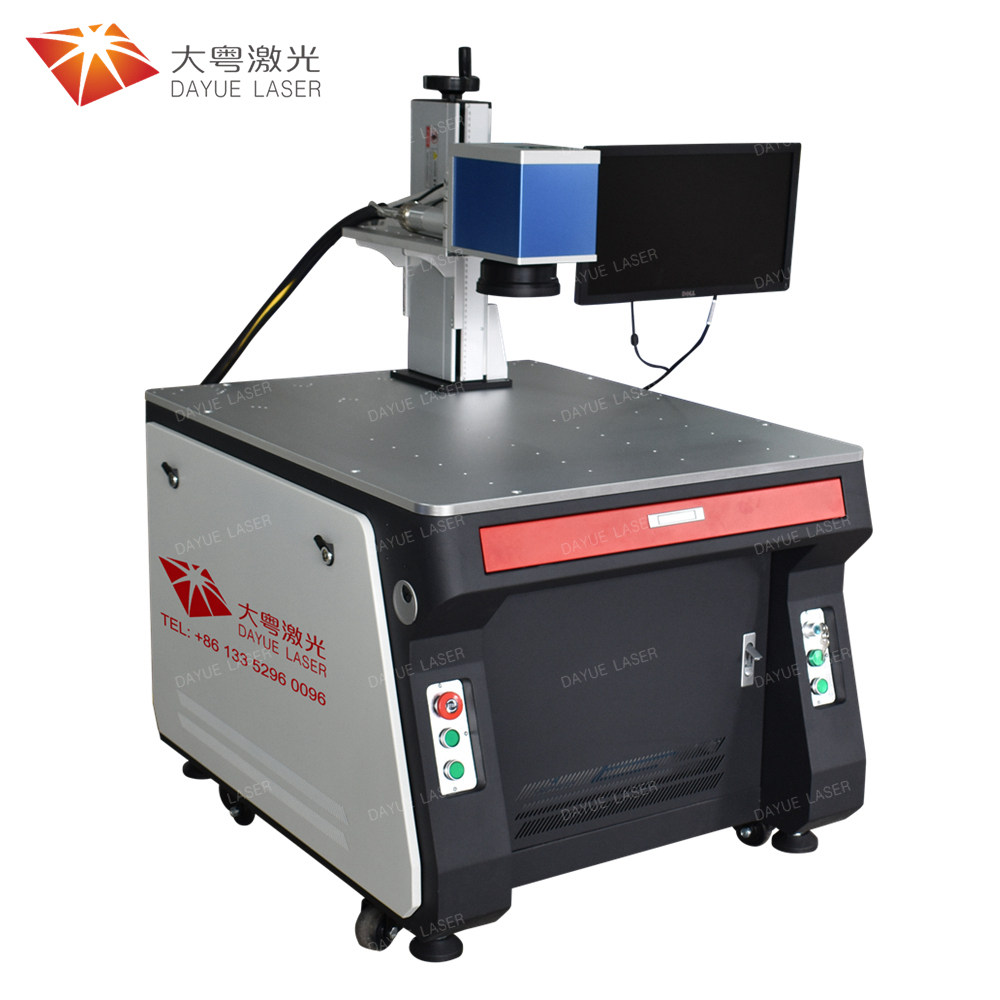

Galvo scanning continuous fiber laser welding machine
The equipment adopts high-precision optical galvanometer scanning method, combined with continuous fiber laser to form a galvanometer welding machine. The laser head can use the built-in galvo mirror to scan the laser without driving the laser head itself...
Product Details
The equipment adopts high-precision optical galvanometer scanning method, combined with continuous fiber laser to form a galvanometer welding machine. The laser head can use the built-in galvo mirror to scan the laser without driving the laser head itself. Galvanometer laser welding equipment is the laser produced by the laser passes through the high-speed scanning galvanometer, and then focuses on the workpiece for welding.
The galvanometer scanning laser welding machine adopts high-speed scanning galvanometer for laser positioning, the speed can reach 7000mm/s, the welding speed is fast, and the production efficiency is higher than ordinary laser spot welding. It is especially suitable for laser precision spot welding of various small and thin-walled parts. The galvanometer and laser are directly controlled by the equipped dedicated laser welding software. The welding spot or graphics can be directly input and edited in the software, and can also be edited by AutoCAD, CorelDRAW and other software, and can also import DWG or PLT files.

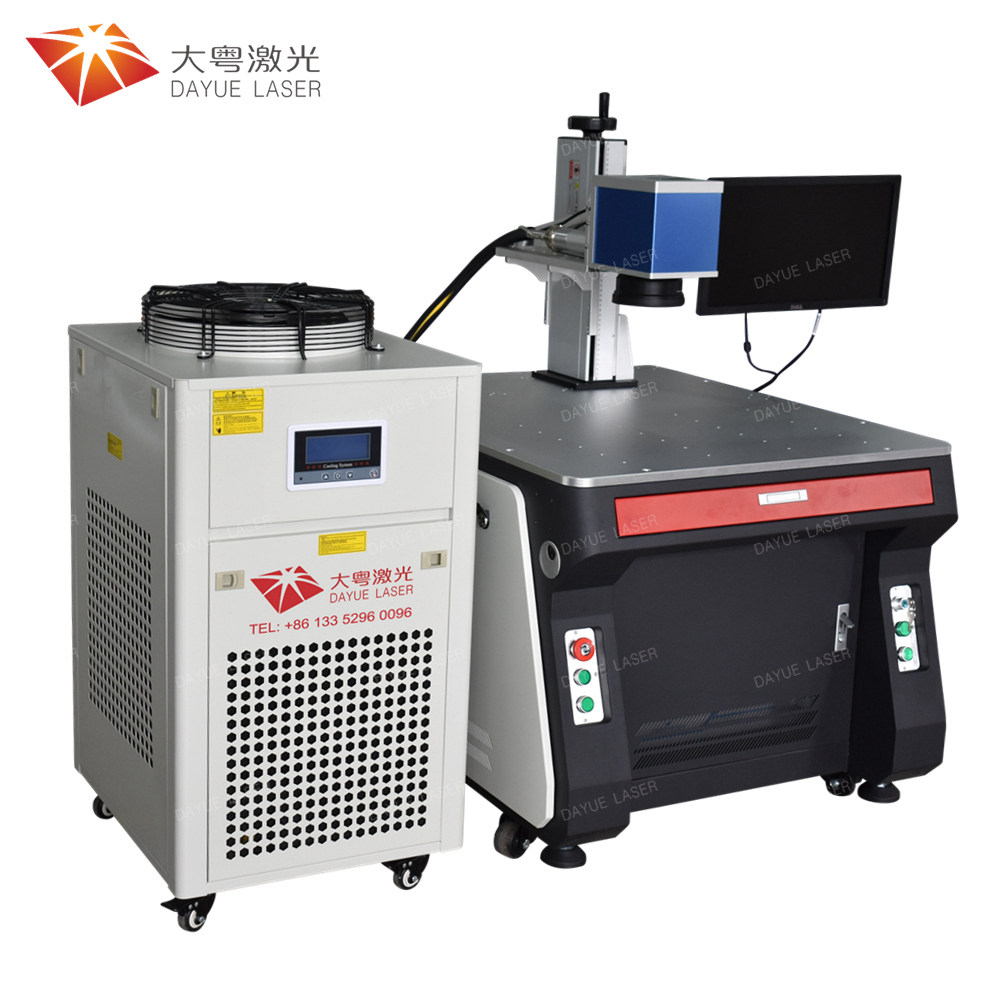

Galvo scanning continuous fiber laser welding machine is mainly composed of galvanometer laser welding table, fiber transmission laser welding host, and water cooling system. The laser realizes the rapid movement of the laser spot through the swing of the galvanometer, and can realize high-speed, high-precision spot welding and continuous welding of any pattern on the welding plane within the welding range. Therefore, compared with the traditional automatic welding machine through the motor drive to move the workpiece welding, the welding speed is greatly improved (more than 5 times).
Galvo scanning continuous fiber laser welding machine is composed of continuous fiber laser, laser power supply, optical scanning system, flat field focusing system, computer and programmable controller, refrigeration system, laser indicating system, operation cabinet and three-axis precision CNC workbench.
Features:
1. Fast welding speed, high accuracy, stable quality, fast positioning, convenient operation and simple maintenance.
2. The thermal deformation is extremely small and does not affect the internal electronic components or chemical composition performance of the product.
3. Dedicated control components, powerful functions, simple operation, compatible with multiple formats of graphics files.
4. The production efficiency is 4-10 times higher than that of the traditional laser spot welding machine.
5. High-power cooling system to meet the continuous working mass production.
6. It can be combined with corresponding supporting equipment to realize online automatic production.
Industry Application：
It is used in welding occasions with high welding process requirements and convenient light path movement. Such as: offline/online welding of mass production companies in electronics, communications, medical machinery, watches, glasses, IT products, digital communications products, precision parts, hardware and other industries. Including the welding of precision parts such as weldable microelectronic components and integrated circuit leads. High-power diodes, types of batteries, mobile phone shields, metal mobile phone casings, metal capacitor casings, computer hard drives, micro motors, sensors, metal shielding nets, shaving blades. High-efficiency laser spot welding, sealing welding, and overlap welding of other types of electronic products.
