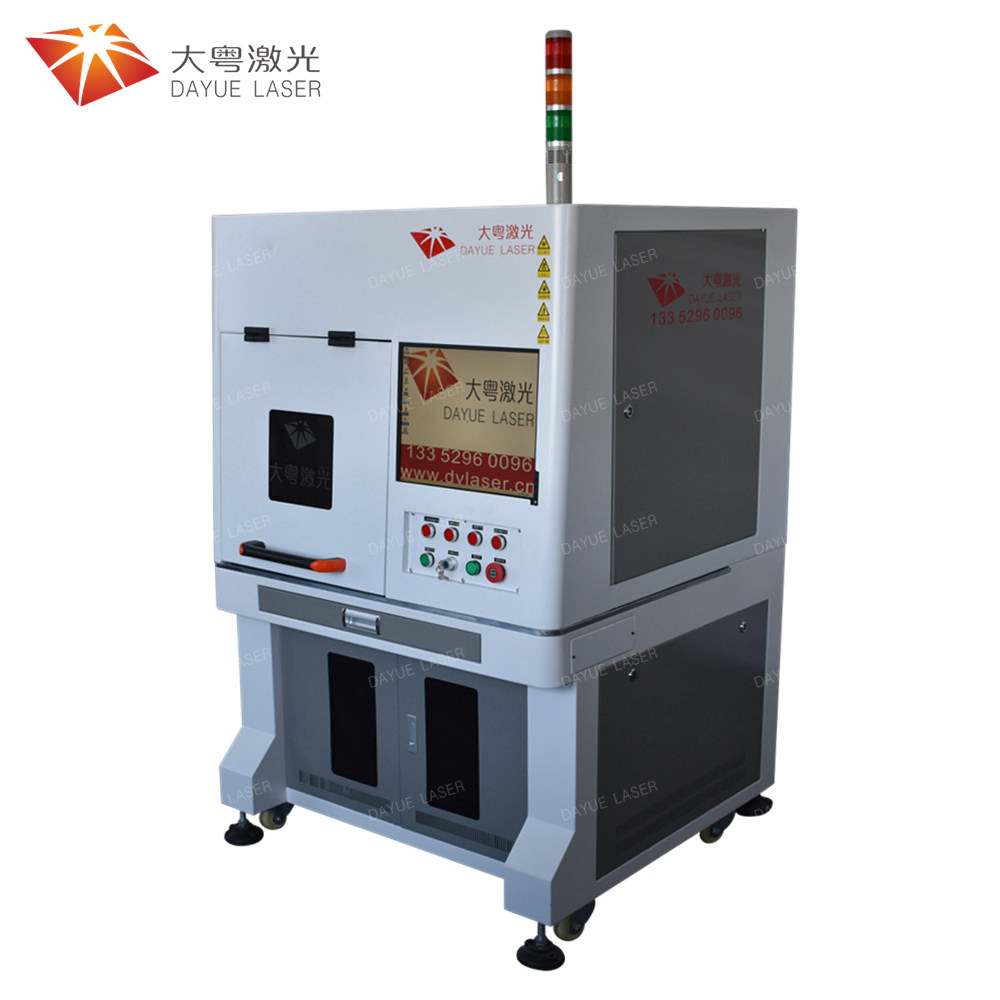

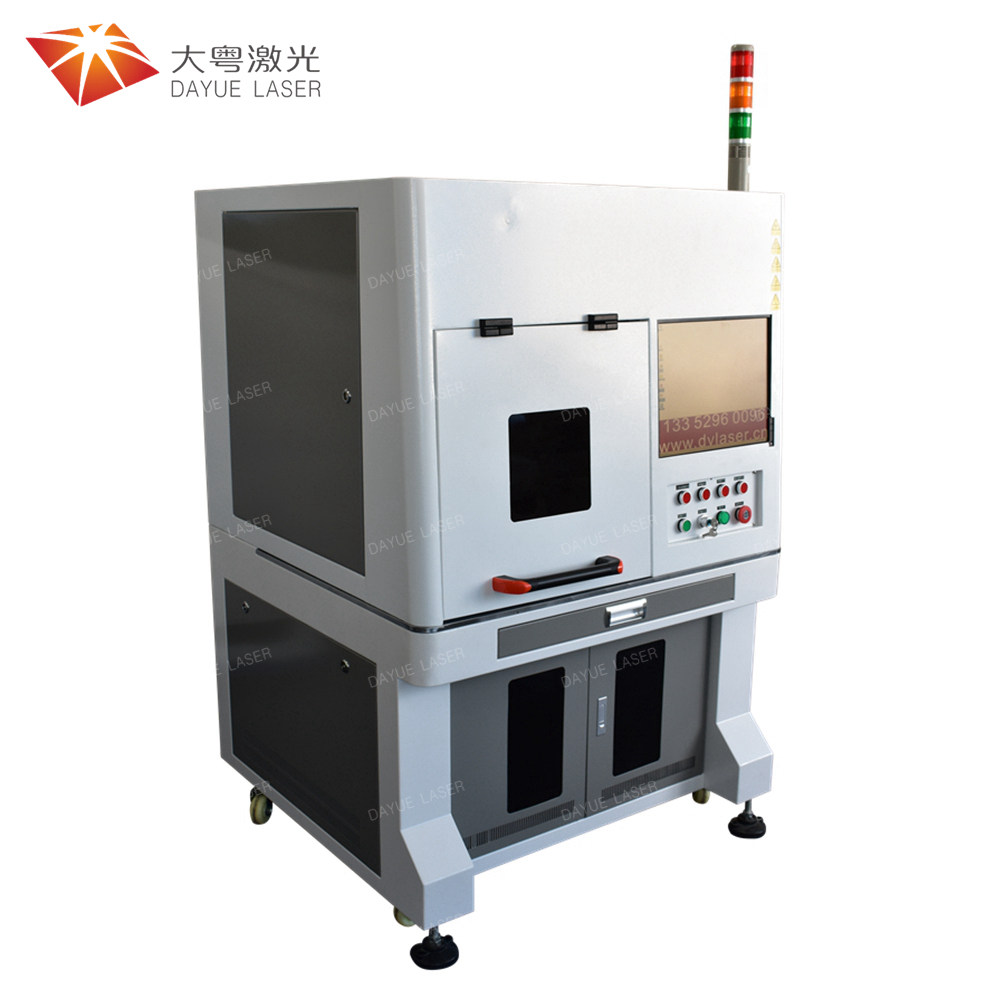

Visual positioning laser marking machine

The visual positioning laser marking system realizes rapid positioning and marking multiple products at once. Any position, any angle, and any number of products can be automatically identified and marked by the software. It saves labor, improves producti...

Product Details
The visual positioning laser marking system realizes rapid positioning and marking multiple products at once. Any position, any angle, and any number of products can be automatically identified and marked by the software. It saves labor, improves production efficiency, and is easy to realize an automated production line compatible with multiple products, saving a lot of costs for the factory.

The CCD visual positioning detection laser marking machine is mainly aimed at the problems of difficult feeding, poor positioning, and slow speed caused by the difficulty of designing and manufacturing fixtures in irregular batch marking. CCD camera marking is solved by using an external camera to take real-time shooting and capture feature points. The system can place the objects to be marked at will, accurately locate and mark, which greatly improves the marking efficiency. High efficiency, high precision, high performance, the appearance is more beautiful, the operation is more convenient, the photoelectric conversion efficiency is high, the beam quality is high, the lines are fine, and the spot is small.

Features:
1. It is convenient to connect to various assembly lines to realize fully automatic positioning and marking; it can also be connected with vibrating plate and automatic feeding machine to realize fully automatic laser marking.
2. Large vision range, supports mainstream lasers such as UV, fiber, CO2, etc., suitable for most products.
3. The software can automatically identify and mark the product at any position, any angle, and any number.
4. Unique software algorithm, high positioning accuracy and fast response speed.
5. Simple operation interface, one-key correction function, make operation easier, clear at a glance, ordinary personnel can get started.
6. The assembly line conveyor can be customized according to product size and product characteristics.

Technical Parameters:
Model: DY-FLM-V
Laser power: 20W/30W/50W/60W/100W
Laser wavelength: 1060nm
Beam quality: <5
Marking frequency: ≤100KHZ
Positioning speed: 7000mm/s or 10000mm/s
Minimum line width: 0.02mm
Power supply: AC220V/50Hz-60Hz
Whole machine power ≤1KW
Engraving depth ≤1mm
Operating system Win10/Win7/WinXP
Cooling method: built-in air cooling
Control interface: Standard USB
Marking range: 50mm/50mm-300mm/300mm
File format: all fonts/types of Windows operating system font

Industry Application:
It is suitable for situations such as heavy workload, difficult object positioning, simplified procedures, diverse workpieces and complex curved surfaces. Widely used in various industries, printing marks on parts and components of various materials, such as electronic communication products, instruments, precision parts, hardware tools, daily necessities, food packaging, etc. The marking content can be the product model, production date, serial number, trademark pattern, bar code and two-dimensional code, etc.
